A mechanical alarm watch is rarely bought because someone needs help waking up anymore.
That makes the Patek Philippe Calatrava Chiming Alarm 5322G more interesting, not less, because its purpose is no longer simple utility but the pleasure of turning a practical function into something musical, tactile and unmistakably high watchmaking.
Here, the alarm steps out from the shadow of travel watches and grand complications and becomes the main event.
At a glance
- Patek Philippe has placed its chiming alarm complication inside a contemporary Calatrava-style white gold watch.
- The alarm is set through a double aperture in 15-minute increments and sounds with a clarity closer to a chiming complication than a conventional buzz alarm.
- The 41mm Ref. 5322G is water resistant to 30 metres and features a grained fumé lacquer dial in blue or green.
A mechanical alarm with a Patek Philippe accent
Most famous alarm watches of the 20th century made their point loudly and directly.
Watches such as the Vulcain Cricket and Jaeger-LeCoultre Memovox earned their reputations with bright, insistent mechanical signals designed to cut through sleep, background noise and daily distraction.
The 5322G comes from a different way of thinking.

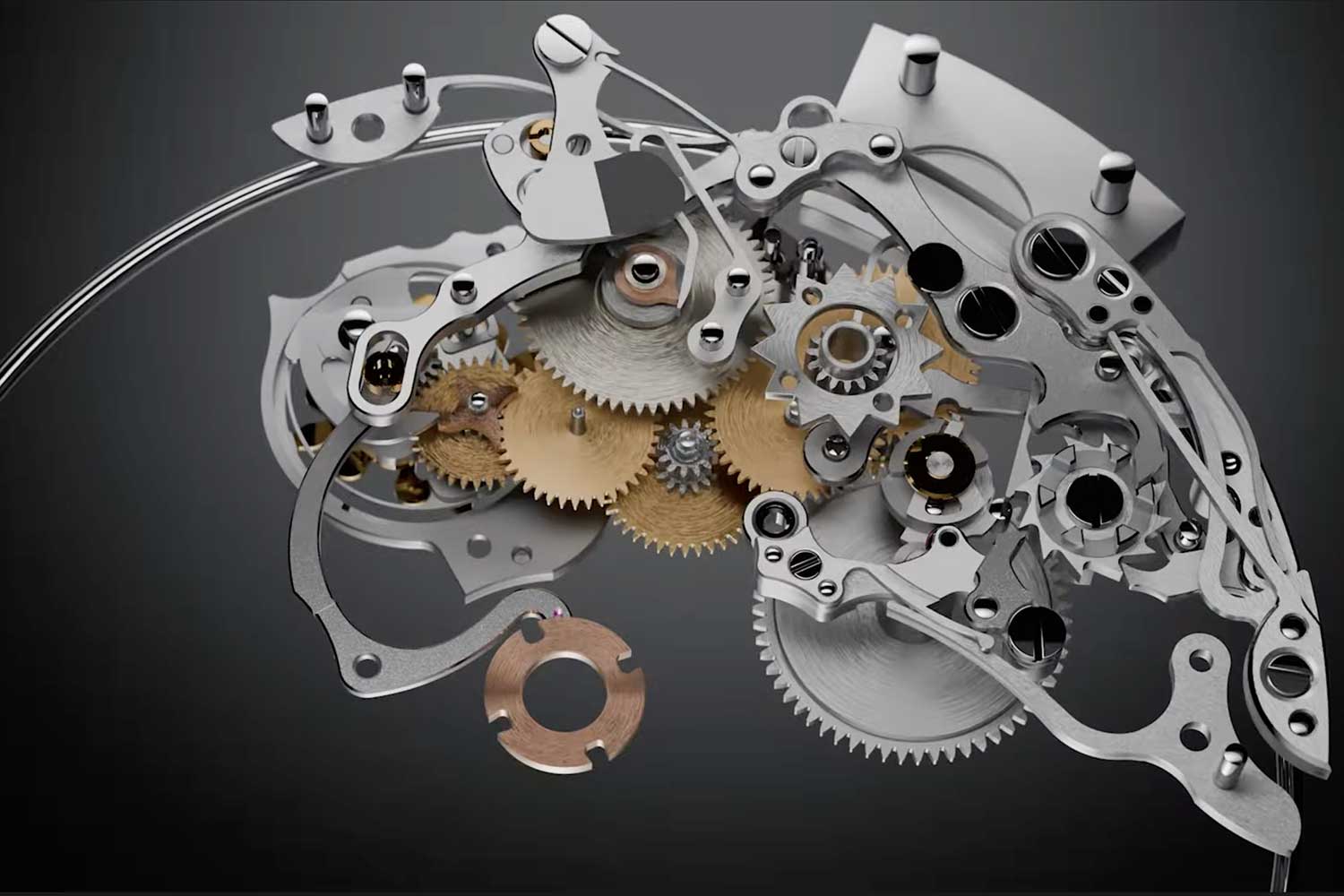

Its alarm is still functional, but the fascination lies in the tone, the cadence and the odd pleasure of hearing a task usually handled by a phone expressed through traditional chiming watch architecture.
Patek Philippe has explored the idea before in far more complicated company.
The Calibre 89 used a separate gong for the alarm, while the Grandmaster Chime elevated the concept further by allowing the alarm to chime the time in hours, quarters and minutes.
The Alarm Travel Time Ref. 5520P then brought the complication into a practical traveller’s watch, combining an alarm with a GMT function in a pilot-style case.
The 5322G changes the mood entirely, giving the alarm a more focused role within a watch that looks and wears like a modern Calatrava rather than a technical instrument.
The 5322G case is quieter than the complication
The white gold case measures 41mm across and 12.2mm thick, dimensions that give the watch presence without making it feel like a grand complication in formal dress.
Compared with the discontinued 5520P, the absence of a four-corner arrangement of pushers and crown makes the 5322G far calmer on the wrist.
The connection to the Calatrava 5226 is clear in the case construction.
The lugs are open along their flanks and attached to the caseback, allowing the clous de Paris hobnail pattern to run uninterrupted around the case band.
Even the pusher at 2 o’clock carries the same hobnail treatment, a small detail that makes the external controls feel integrated rather than added on.
The case is rated to 30 metres of water resistance, making it the only water-resistant chiming watch in Patek Philippe’s current catalogue.

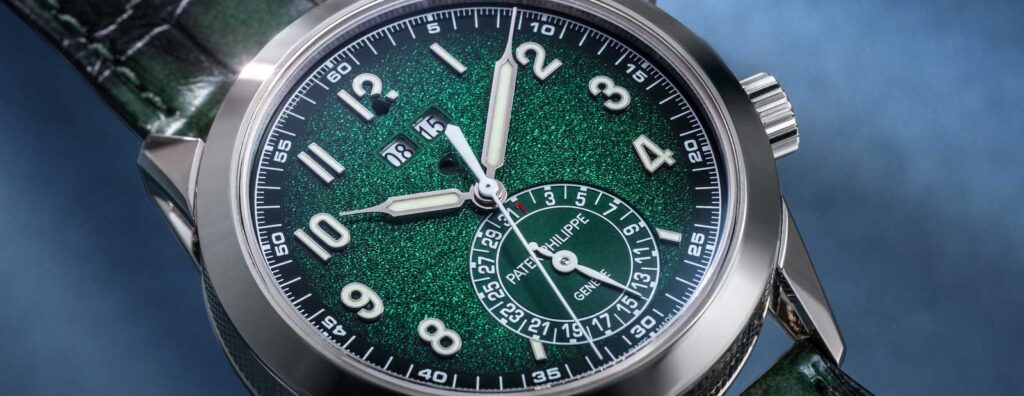

A textured fumé dial with a useful display
The dial starts with a brass base before receiving a nickel-gold coating and a stamped grained surface inspired by vintage camera bodies.
Blue or green lacquer is then applied, with black lacquer sprayed at the edge while the dial rotates to create the fumé effect.
The result is not a traditional dress-watch dial in the old sense.
It has depth, texture and a slightly utilitarian quality, helped by white gold syringe hands, applied Arabic numerals and generous Super-LumiNova.
The alarm display sits in the upper half of the dial through a double aperture showing the selected time in quarter-hour steps.
A day and night indication below it allows the alarm to be programmed across a full 24-hour cycle.
Setting the alarm is handled through the crown at 4 o’clock, which is pulled to an intermediate position and turned in either direction until the desired time appears.
The system can be adjusted forward or backward, with an alarm programmable up to 23 hours ahead, though always in 15-minute increments.
A bell-shaped aperture cut through the 12 o’clock numeral shows whether the alarm is active, changing from black to white when engaged by the pusher at 2 o’clock.
At 6 o’clock, a pointer date adds daily practicality, adjusted separately through a recessed corrector between 6 and 7 o’clock.
Details & Specifications
| Brand | Patek Philippe |
|---|---|
| Model | Calatrava Chiming Alarm 5322G |
| Case size | 41mm |
| Case material | White gold |
| Case thickness | 12.2mm |
| Dial | Grained fumé lacquer dial in blue or green |
| Hands and numerals | White gold syringe hands and Arabic numerals with Super-LumiNova |
| Complication | 24-hour chiming alarm adjustable in 15-minute increments |
| Additional indication | Pointer date at 6 o’clock |
| Controls | Crown at 4 o’clock, alarm pusher at 2 o’clock, recessed date corrector between 6 and 7 o’clock |
| Water resistance | 30 metres |
The Calatrava Chiming Alarm 5322G works because it doesn’t pretend the alarm watch is still an essential daily tool.
Instead, it treats the complication as an acoustic pleasure and wraps it in a case and dial that feel relaxed, contemporary and distinctly Patek Philippe.
